Smart Toilet Control
STC – Smart Toilet Control Panel with Programmable Flush Optimization
The Smart Toilet Control (STC) from Raritan is an intelligent marine sanitation upgrade, designed to give boat owners full control over water usage, flush performance, and holding tank management. By integrating technology into the flushing process, the STC ensures efficient operation without compromising cleanliness or convenience.

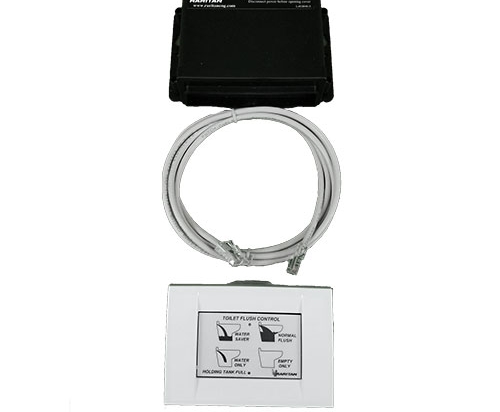

The system includes a programmable controller, flush panel, and a 7-foot cable, allowing for flexible installation in a wide range of vessel layouts. Four distinct flush modes—Normal Flush, Water Saver, Water Only, and Empty Only—give users precise control based on their needs and current conditions.
When either Normal or Water Saver is selected, the STC initiates a full or reduced flushing cycle automatically. If preferred, users can opt for manual modes: Water Only activates the inlet to add water to the bowl for up to 8 seconds, and Empty Only evacuates the bowl on demand, also with an 8-second safety limit. This control helps conserve both fresh water and holding tank capacity, essential on extended voyages or when operating under limited tank storage.
All flush cycle timings—including pre-fill, discharge, and refill—are fully programmable from the panel, allowing users to customize performance for different toilet types or onboard plumbing setups. If wired into your tank monitoring system, the STC panel will also display holding tank full status. When the tank is full, flush buttons are automatically disabled to prevent overflow, while Water Only and Empty Only remain active for safety.
Built-in reverse polarity protection ensures safe operation, even during incorrect wiring scenarios. If reversed, the system will self-correct when normal power is restored within 10 minutes, safeguarding connected motors and solenoids.
Engineered for reliability and flexibility, the STC Smart Toilet Control delivers smarter marine sanitation control in a user-friendly, compact interface—backed by Raritan’s industry-leading quality and support.
Flush timing of initial fill, discharge and final fill are fully programmable from panel.
If wired, panel also shows holding tank full status. When holding tank full LED is lit, normal and water saver button are disabled. Water only and empty button continue to function.
Control is reverse polarity protected. In case of reverse polarity motors and solenoid will activate as soon as power is connected. After reverse polarity is corrected (within 10 minutes), unit will work as normal.
